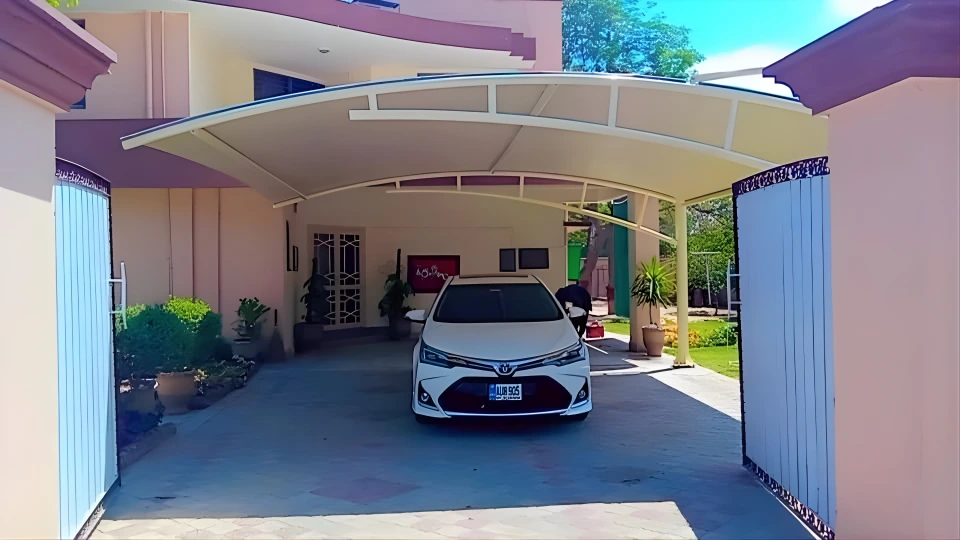

Car Parking Shades in Pakistan
Car parking shades are tensioned fabric structures that cover vehicle bays at homes, offices and larger car parks. Our Lahore-based team designs each layout around vehicle access, supports and drainage, with service across Pakistan.
FR Tensile Shades designs and installs car parking shades for residential and commercial sites. We have 10+ years of experience and 100+ completed projects across our shade services.
Start with the vehicles and how they move through the space. Bay positions, turning room and the area to be covered guide the proposal before a fabric shape is selected.
What are Car Parking Shades?
A car parking shade uses a tensioned fabric membrane supported by a frame to cover parking bays. The membrane is the fabric surface; its shape, support positions and drainage are designed together.
Types of Car Parking Shades We Offer in Pakistan
Choose a parking layout before choosing a roof shape. The number of vehicles, entrance position and space for supports help determine which arrangement fits your property.

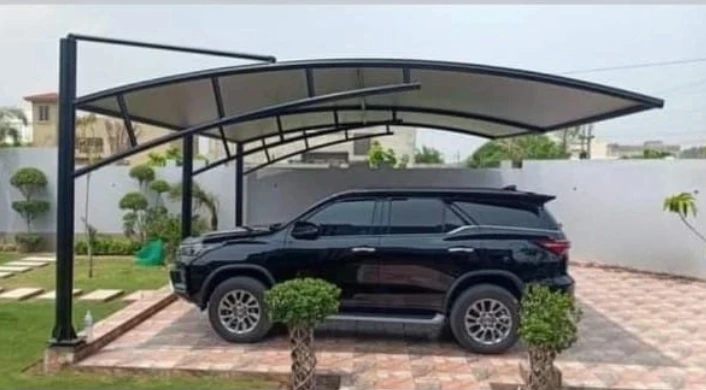

Cantilever Car Parking Shades
A cantilever arrangement supports the canopy from one side, keeping the opposite side open for access. Support positions and the span are assessed for the parking layout; the shape alone does not establish wind performance.

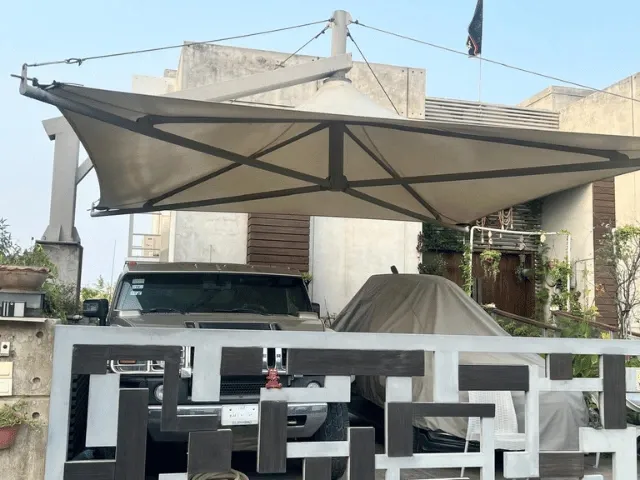

Pyramid Car Parking Shades
A pyramid-shaped membrane gives a parking canopy a pointed profile. Its supports and fabric tension are designed for the site rather than relying on the shape as a promise of wind resistance.

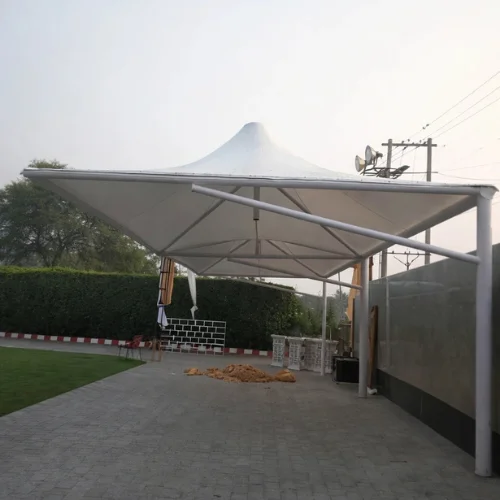

Conical Car Parking Shades
A conical canopy uses a cone-shaped fabric surface. We consider where rainwater will discharge and how the supporting frame fits around parked vehicles.

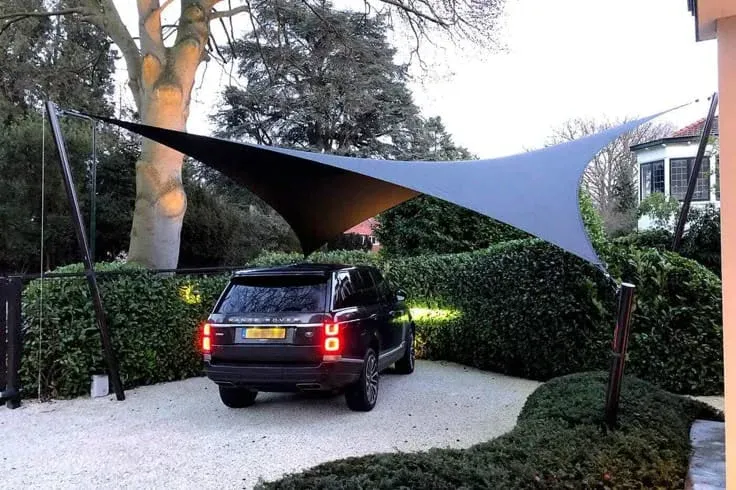

Hypar Car Parking Shades
A hypar is a fabric form with opposing high and low corners, creating a curved, saddle-like surface. The arrangement of those corners must fit the available support positions and intended parking coverage.
Custom Car Parking Shade Designs
For an irregular driveway or several bays, a custom layout combines the required coverage with usable access. We assess dimensions, select the frame arrangement and prepare structural calculations before sharing the design with you.
Fabric and Frame Specifications
We supply KL720 and KL820 PVC-coated woven polyester, available in white, off-white and grey. Both use 1000D 23×23 woven fabric and are manufactured to a technical specification, tested for tear strength to ISO 4674-1:2016.
| Fabric | Weight | Tear strength |
|---|---|---|
| KL720 | 720 g/m² ±20 g/m² | 436 N/50 mm |
| KL820 | 820 g/m² ±20 g/m² | 435 N/50 mm |
The reported tear-test method is ISO 4674-1:2016 Method B. The manufacturer states that the anti-UV treatment provides approximately 4 to 5 years with no fading. This is the manufacturer’s stated rating, not our own no-fading guarantee or a measured UV-blocking percentage.
Data-sheet values are indicative historical results and guidance only, without a manufacturer warranty in the sheet. The manufacturer recommends testing performance for the intended application. These fabric results do not establish the performance of a complete installed structure.
MS Pipe Frame
All our tensile shade structures use mild steel (MS) pipe frames. Our team prepares and reviews structural calculations in-house for every project before sharing them with the client. Wind exposure and support requirements are assessed as part of the design.
Planning Coverage Around Vehicles
Vehicle access and bay layout
Allow for vehicle entry, turning and opening doors when deciding where supports can stand. Share the vehicle count and dimensions of the parking area so the proposal addresses actual use.
Sun exposure and drainage
The covered footprint and sun direction influence where shade falls. Drainage also needs a planned discharge route rather than sending water across the parking entrance.
Inspection and maintenance
After-sales inspections, adjustments and maintenance are available. Ask our team to review fabric tension, supports and drainage if the installation needs attention.

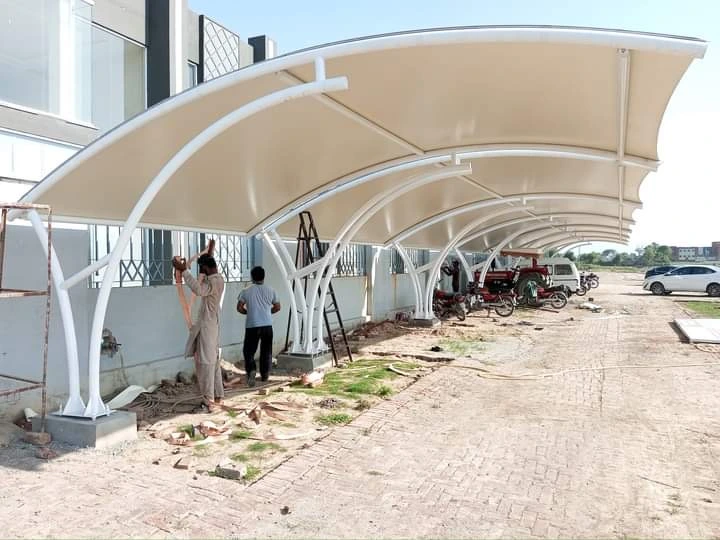

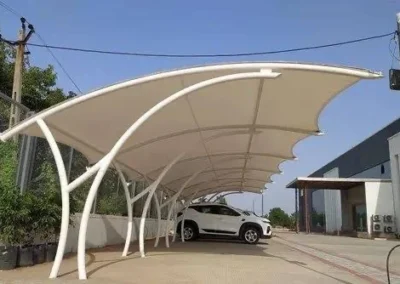

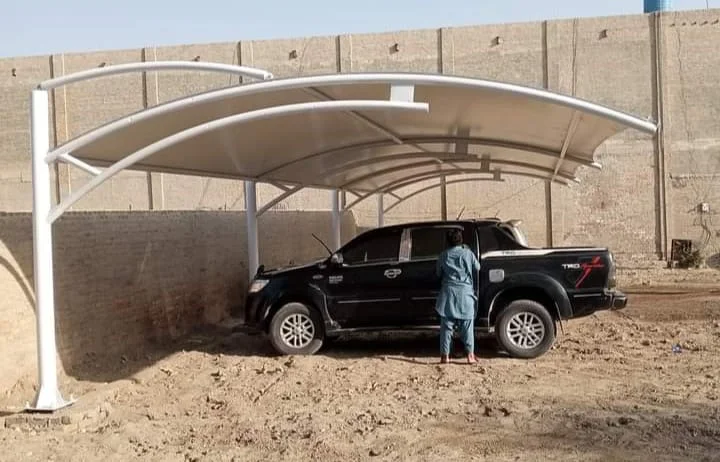

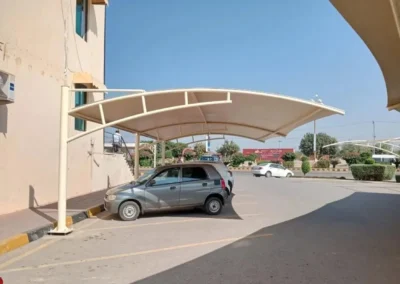

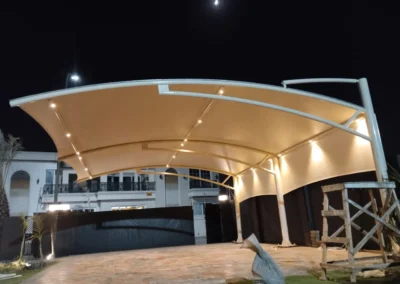

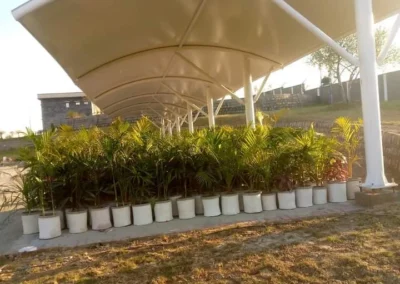

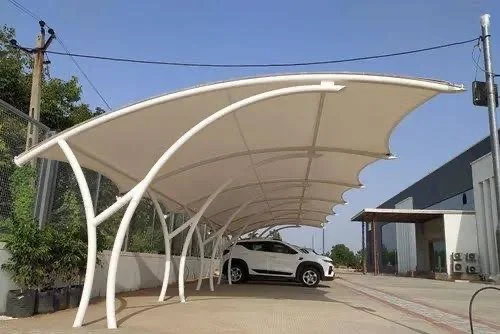

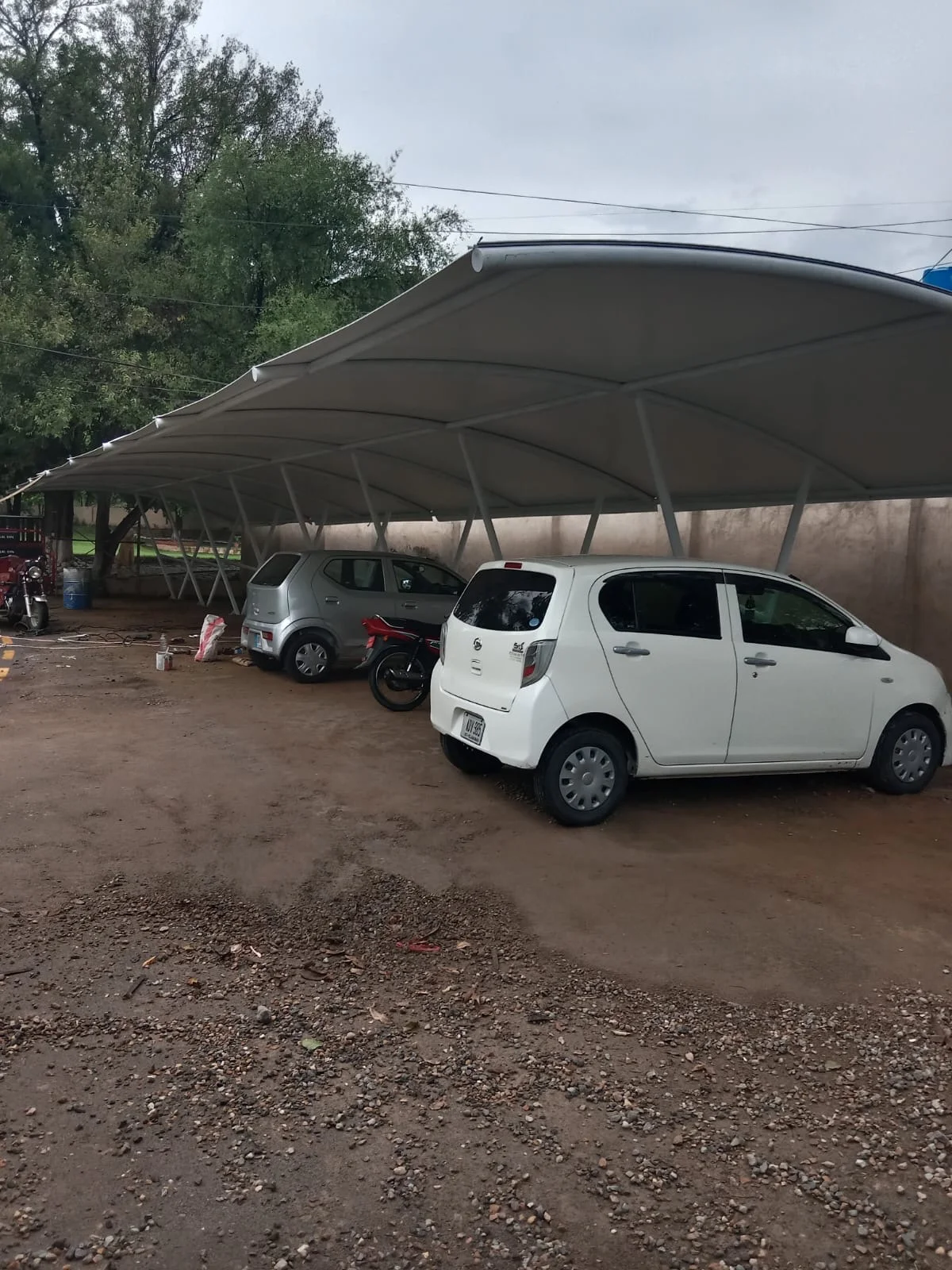

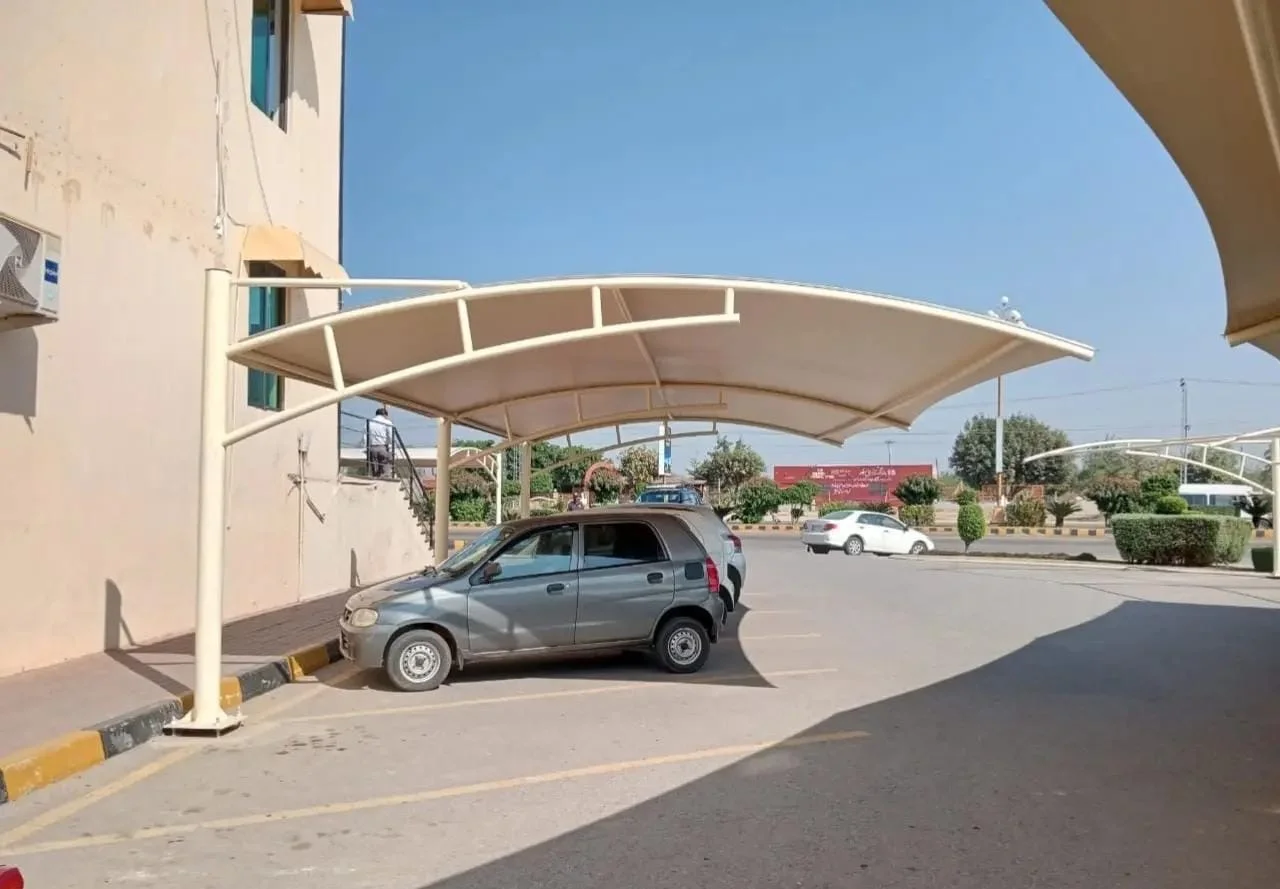

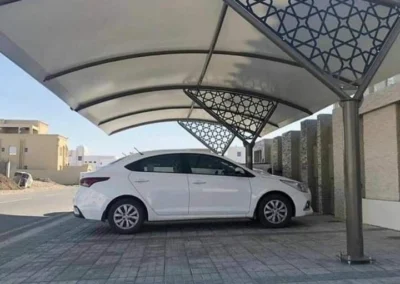

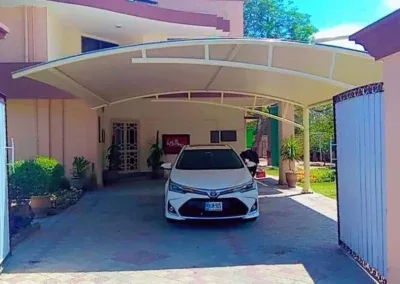

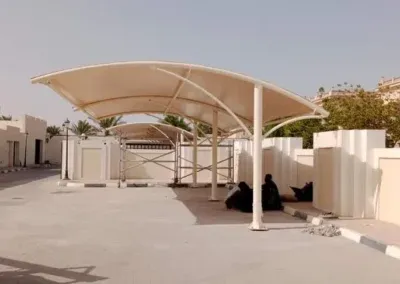

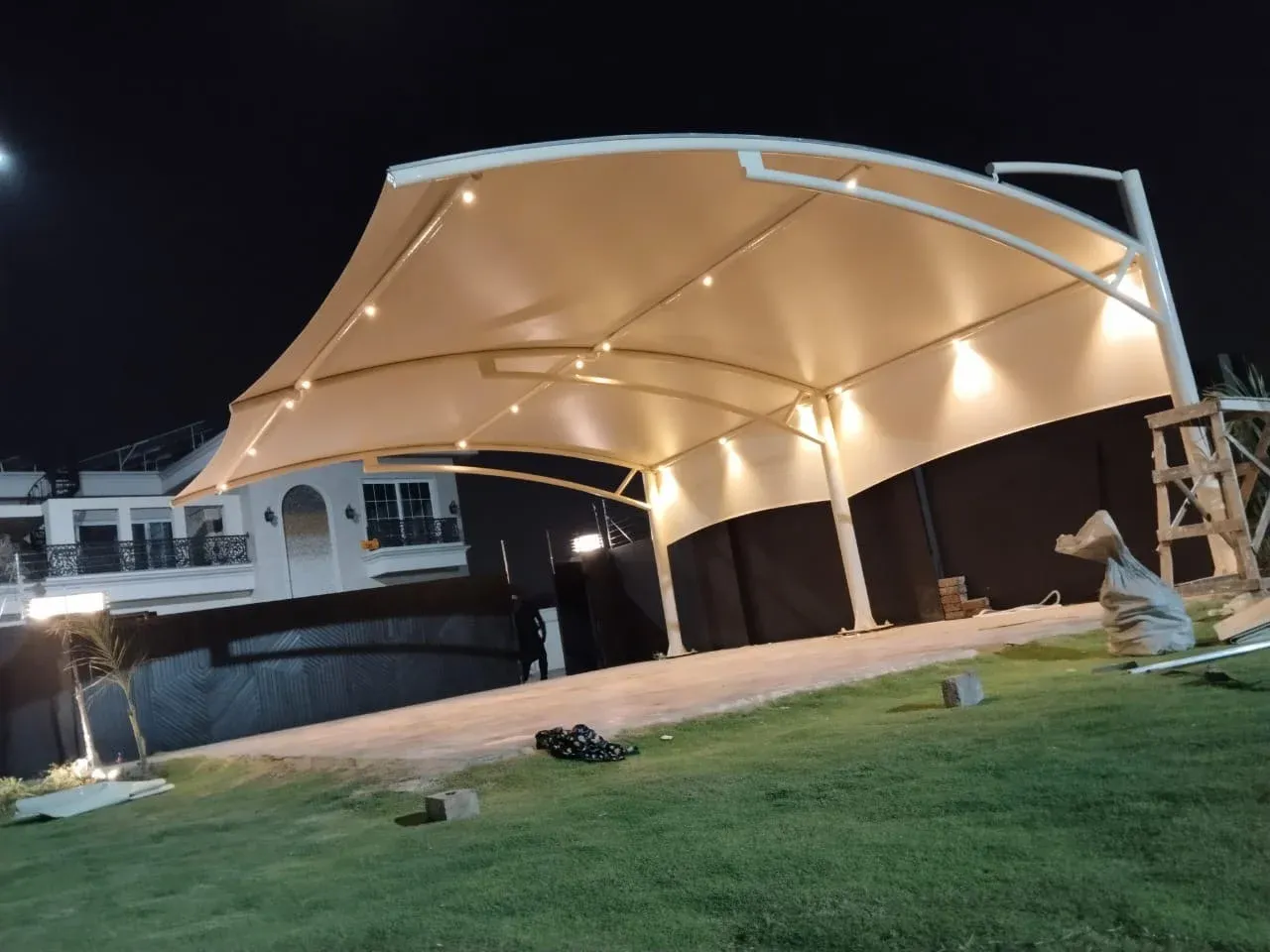

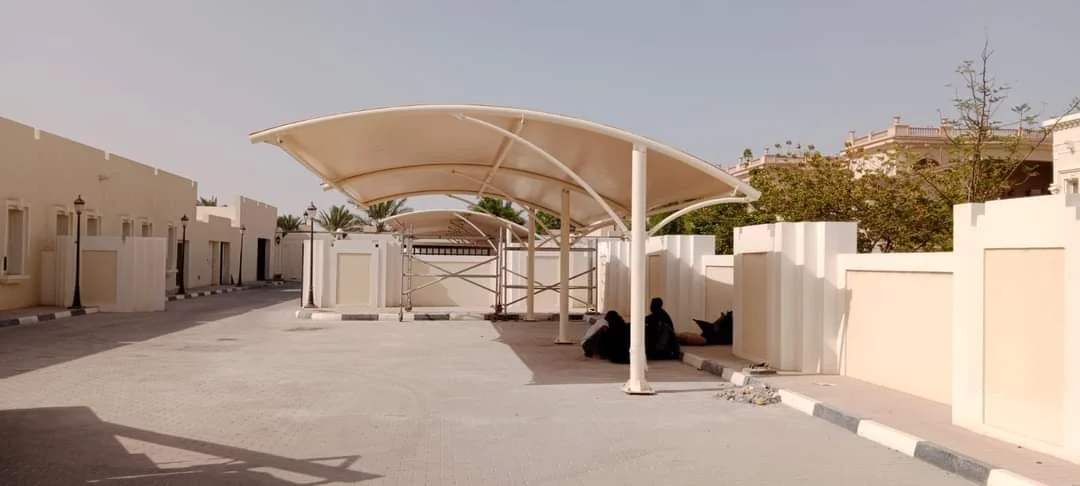

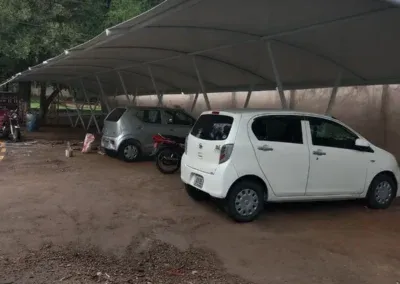

Our Completed Car Parking Shade Projects in Pakistan

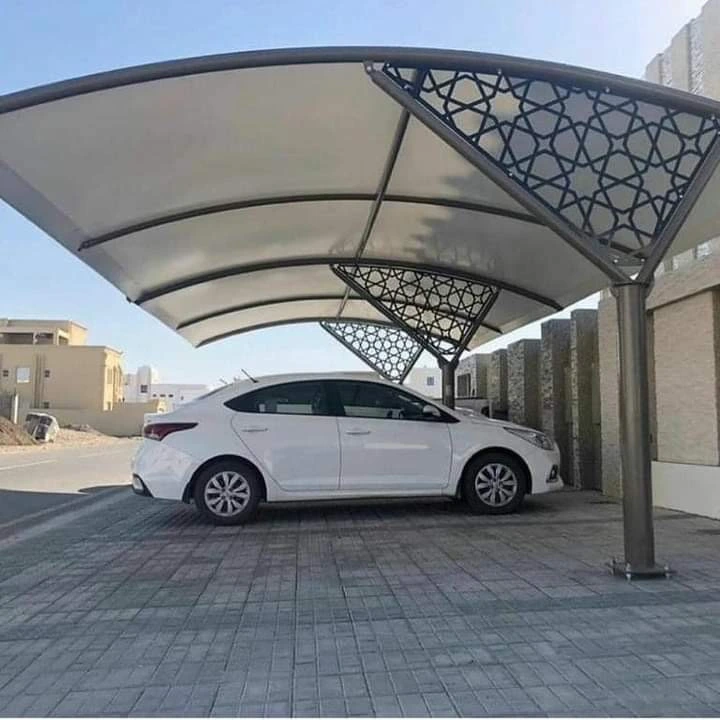

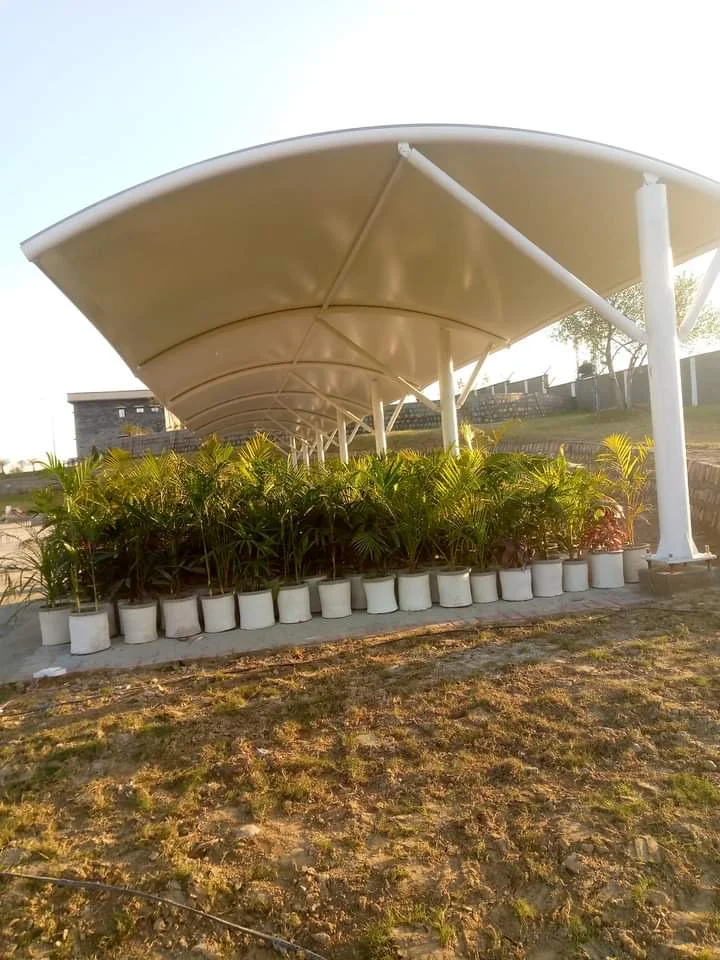

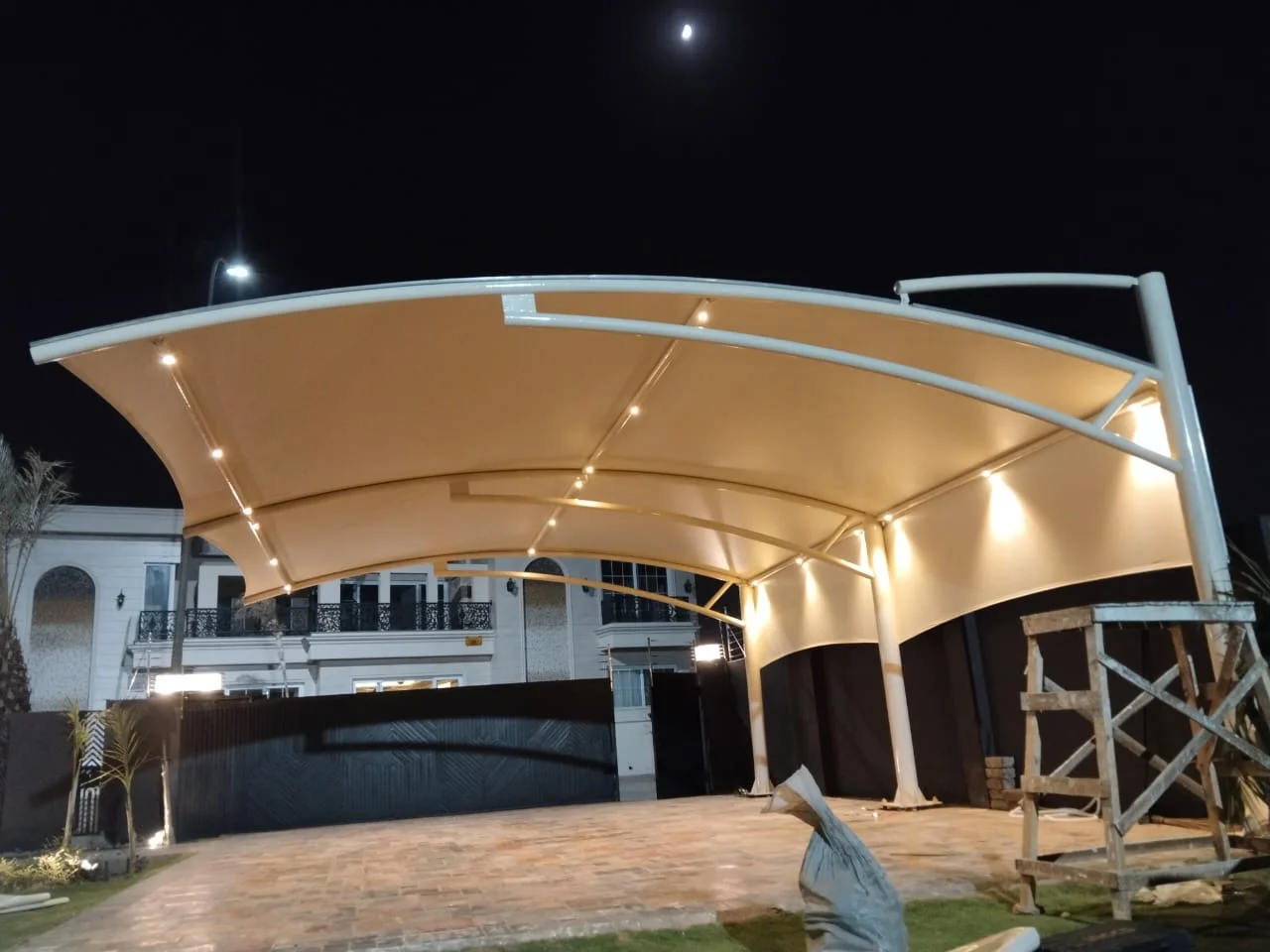

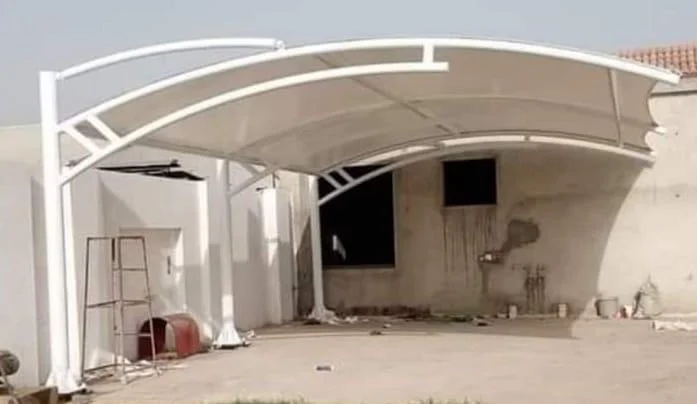

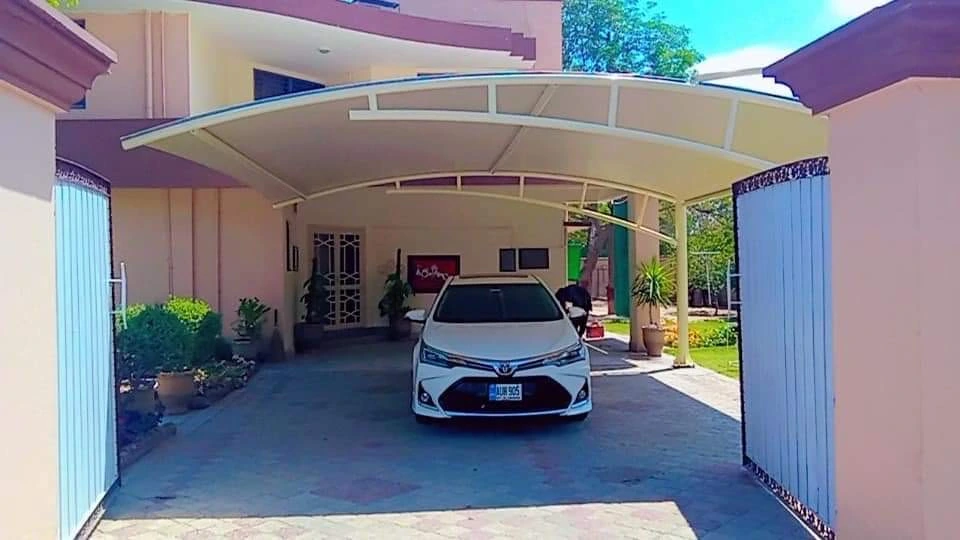

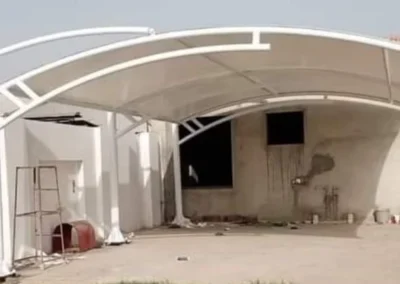

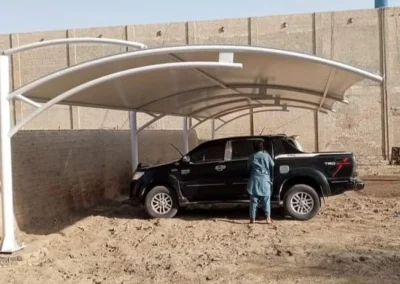

These photographs show our own installations. Use them to discuss the form and coverage you want; specifications are confirmed for your site.
What to Send for a Free Quote
Send photos, videos and site dimensions, together with the number of vehicles and the area you want covered. Include the entrance and any existing structures that affect support placement.
Consultation and quotes are free. Site inspection in Lahore is free. For other locations in Pakistan, assessment starts with client-submitted photos and videos; visits are arranged on a per-project basis.
See our completed installation photographs or send your site requirements.
Warranty and After-Sales
5-year warranty on fabric, structure and workmanship, excluding Acts of God, fire, and damage caused by people or animals.
After-sales inspections, adjustments and maintenance are available. Contact our team to discuss the work your installation needs.
Frequently Asked Questions
Which layout suits my parking area?
The layout depends on the number of vehicles, bay positions and access. A cantilever arrangement can leave one side open, while other forms use different support positions. We review your dimensions before recommending a layout.
Where can the supports go?
Support positions must suit vehicle movement and the structure. Show the entrance, parking bays and nearby walls in your photos and video so we can assess the available space.
What affects the price?
The number of bays, span, MS pipe frame, supports, fabric area, drainage and site access affect the quote. Consultation and the quote are free.
What maintenance is available?
We provide after-sales inspections, adjustments and maintenance. The work needed depends on the condition of the fabric, frame and drainage; no fixed maintenance interval applies to every site.
Which fabric is used for a parking canopy?
We supply the two PVC-coated woven polyester options listed in the material specifications above. Fabric selection is considered together with the parking span and design, rather than fabric weight alone.
Can you install outside Lahore?
Yes. Send site photos, videos and dimensions for an initial assessment outside Lahore. Visits are arranged per project. In Lahore, the site inspection is free.
LET’S TALK ABOUT YOUR SPACE
Discuss Your Car Parking Shade Project
Send photos, videos and site dimensions for a free consultation and quote. Our Lahore-based team will review your parking layout.
