Wall-Mounted Shades in Pakistan

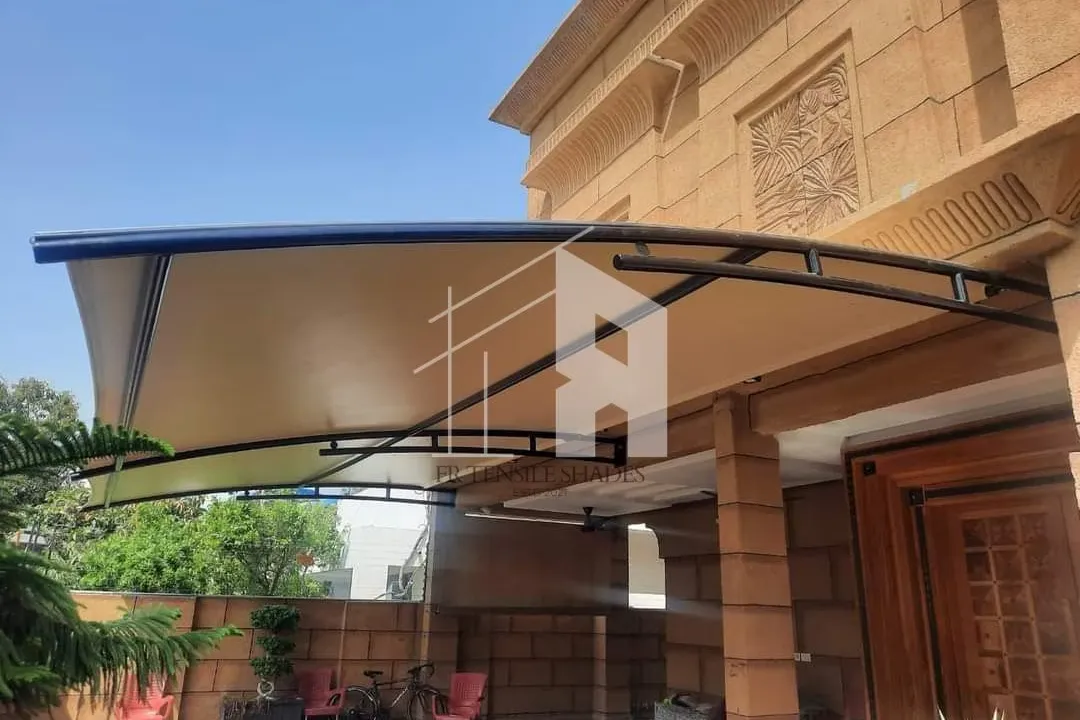

Wall-mounted shades are tensioned fabric covers attached to a suitable building wall for patios, balconies and walkways. Our Lahore-based team assesses the wall, projection and supports before designing an installation in Pakistan.
What Is a Wall-Mounted Tensile Shade?
A wall-mounted shade transfers loads through its attachments to a building. The wall and connections must be assessed before the projection or support arrangement can be confirmed.
FR Tensile Shades designs these covers for patios, balconies, entrances and narrow walkways. Maximum projection is 16 ft, subject to site inspection and confirmation that the wall can carry the design loads.
Our own team prepares and reviews structural calculations for every project before sharing them with the client. The assessment also determines what attachment work is needed.
Types of Wall Mounted Shades We Offer in Pakistan
Wall-mounted designs differ in fabric form and how the loads reach the building. Choose the arrangement after checking the wall, intended projection and available space.

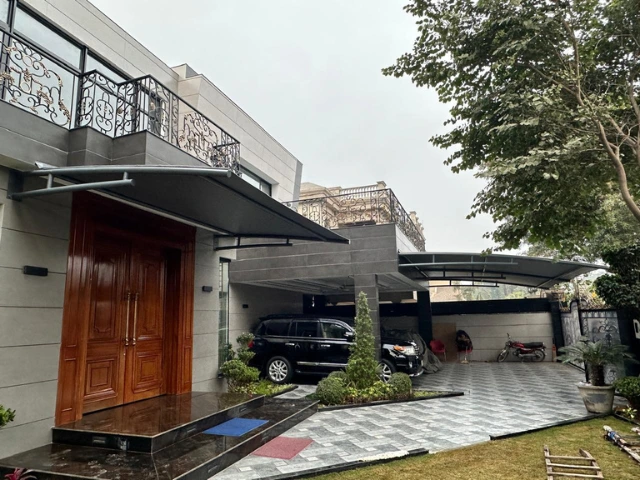

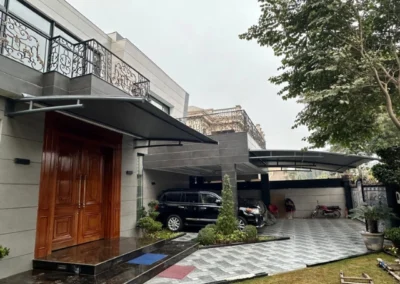

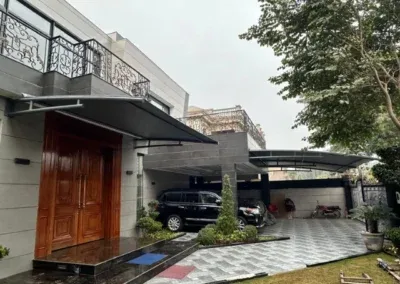

Cantilever Wall Mounted Shades
A cantilever projects from its supporting wall. A post-free cantilever or suspended/tensioned system is possible only where a site assessment confirms that the wall and connections can carry the full vertical load and wind uplift.

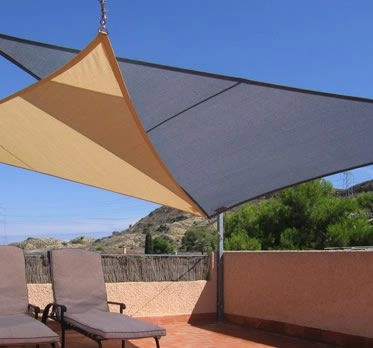

Sail Wall Mounted Shades
Sail-shaped fabric panels can provide coverage beside a patio or walkway. The wall attachments, other supports and high and low points are planned together so the fabric can be tensioned and drained.

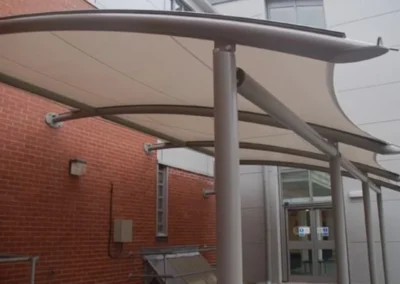

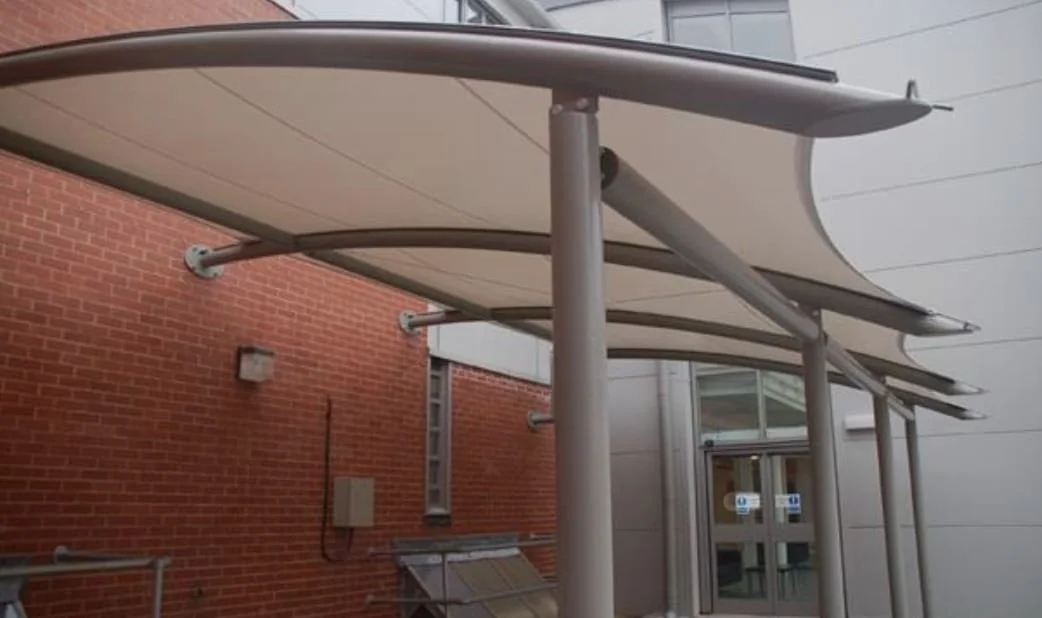

Barrel Vault Wall Shades
A barrel-vault form has a curved, tunnel-like profile. We assess how that curve meets the building and where supports can stand without obstructing the entrance or walking route.

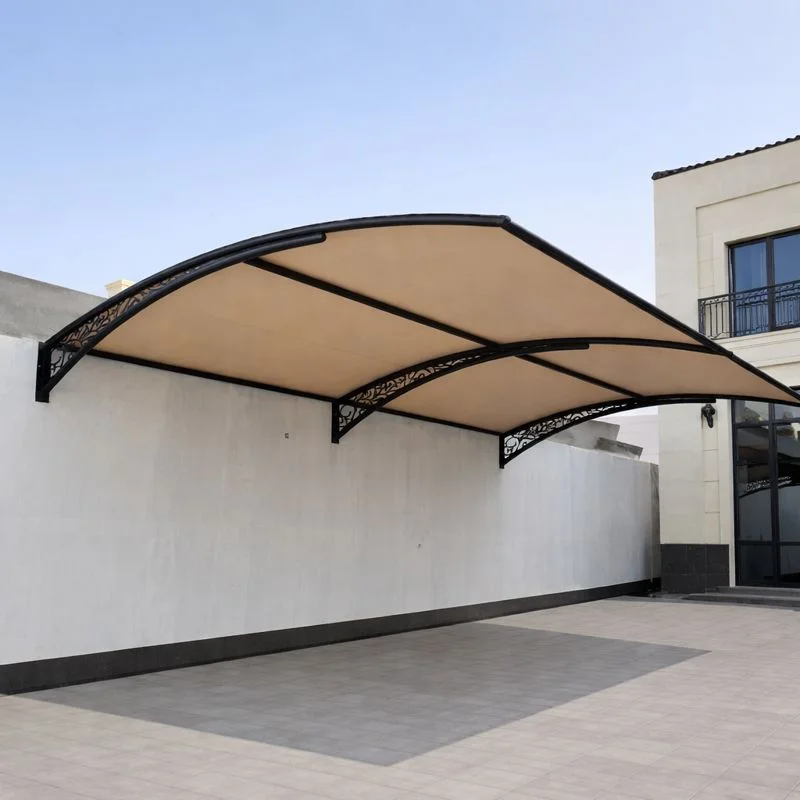

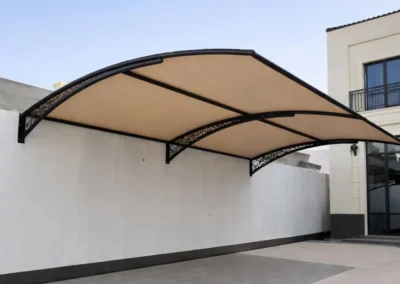

Custom Wall Mounted Shade Designs
A custom design starts with the wall and desired coverage. Maximum projection is 16 ft, subject to site inspection; a smaller projection or additional supports may be needed after the wall assessment.
Fabric and Frame Specifications
We supply KL720 and KL820 PVC-coated woven polyester, available in white, off-white and grey. Both use 1000D 23×23 woven fabric and are manufactured to a technical specification, tested for tear strength to ISO 4674-1:2016.
| Fabric | Weight | Tear strength |
|---|---|---|
| KL720 | 720 g/m² ±20 g/m² | 436 N/50 mm |
| KL820 | 820 g/m² ±20 g/m² | 435 N/50 mm |
The reported tear-test method is ISO 4674-1:2016 Method B. The manufacturer states that the anti-UV treatment provides approximately 4 to 5 years with no fading. This is the manufacturer’s stated rating, not our own no-fading guarantee or a measured UV-blocking percentage.
Data-sheet values are indicative historical results and guidance only, without a manufacturer warranty in the sheet. The manufacturer recommends testing performance for the intended application. These fabric results do not establish the performance of a complete installed structure.
MS Pipe Frame
All our tensile shade structures use mild steel (MS) pipe frames. Our team prepares and reviews structural calculations in-house for every project before sharing them with the client. Wind exposure and support requirements are assessed as part of the design.
What Determines a Wall-Mounted Installation?
Wall capacity comes first
Photos help with the initial discussion, but they do not establish load capacity on their own. The site assessment determines whether the wall and its connections can support the proposed arrangement.
Projection and usable space
Measure outward from the wall to the area you want covered. Keep doors, windows and the route beneath the shade visible in your site photos. The maximum 16 ft projection remains subject to site inspection.
When front posts can be avoided
For a cantilever or suspended/tensioned design, the building must carry the full vertical load and wind uplift. Where that cannot be confirmed, do not assume the front edge can remain unsupported.
Drainage beside the building
The design considers fabric tension, the connection to the building and the direction of rainwater discharge. An entrance canopy and a long side passage can need different layouts.

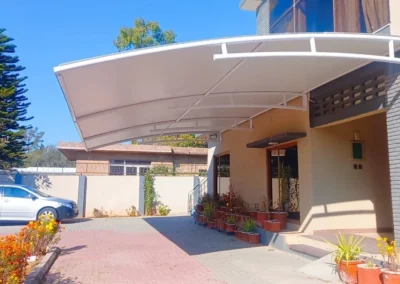

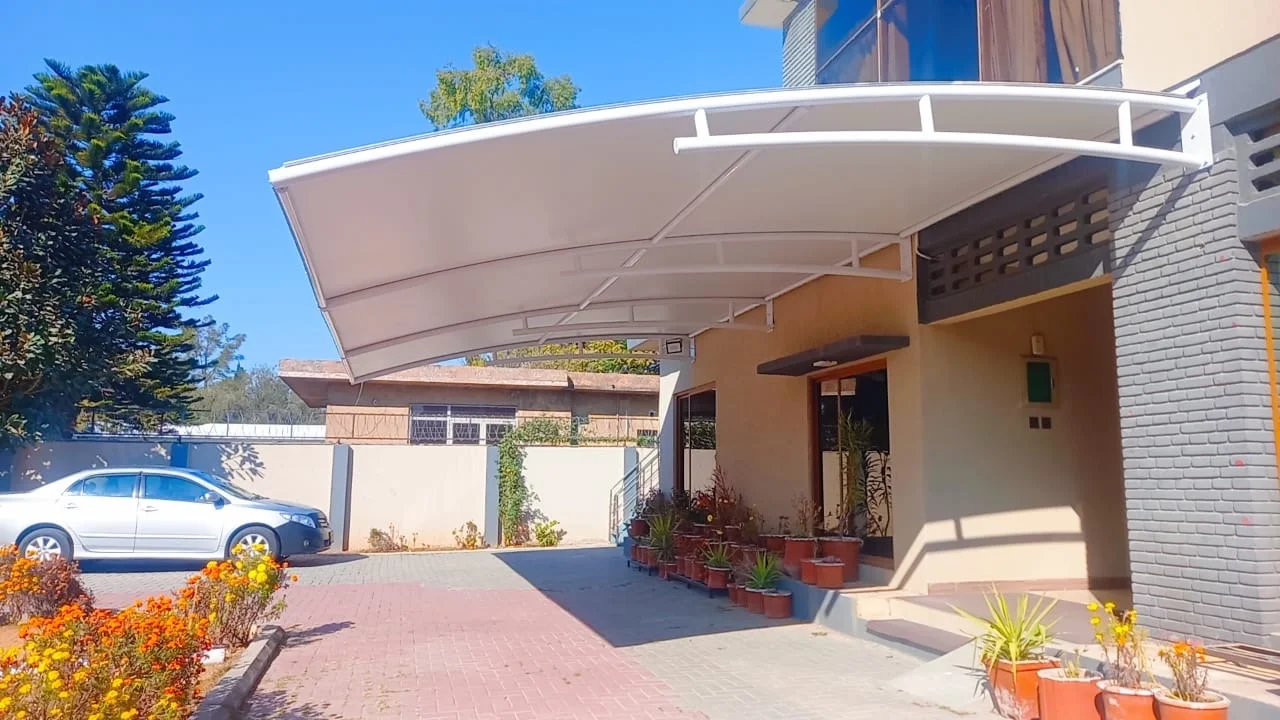

Our Completed Wall Mounted Shade Projects Across Pakistan
What to Send for a Free Quote
Send photos and video of the wall, the surrounding space and any doors or windows, along with site dimensions and desired projection. Our Lahore site inspection is free; elsewhere, we begin with the material you send and arrange visits per project.
Consultation and quotes are free. Site inspection in Lahore is free. For other locations in Pakistan, assessment starts with client-submitted photos and videos; visits are arranged on a per-project basis.
See our completed installation photographs or send your site requirements.
Warranty and After-Sales
5-year warranty on fabric, structure and workmanship, excluding Acts of God, fire, and damage caused by people or animals.
After-sales inspections, adjustments and maintenance are available. Contact our team to discuss the work your installation needs.
Frequently Asked Questions
Can my wall support a shade?
The wall and its connections require a site assessment before we can confirm the design loads and attachment requirements. The assessment determines what work is needed.
Can a shade be installed without front posts?
Yes, conditionally. A cantilever or suspended/tensioned design can omit front posts only when a site assessment confirms the wall and connections can carry the full vertical load and wind uplift.
What is the maximum projection?
Maximum projection is 16 ft, subject to site inspection and confirmation that the wall can carry the design loads. This is a maximum capability, not a suitable projection for every wall.
What affects the installation price?
Projection, span, wall condition, attachment requirements, frame, fabric and access affect the estimate. Send dimensions and site images for a free consultation and quote.
What frame and fabric do you use?
The frame uses MS pipe with one of the two documented PVC-coated woven polyester fabrics. The specification block gives the fabric details; the wall assessment determines the supporting arrangement.
How do assessments work outside Lahore?
We begin with client-submitted photos, videos and dimensions. Visits outside Lahore are handled per project, while site inspection within Lahore is free.
